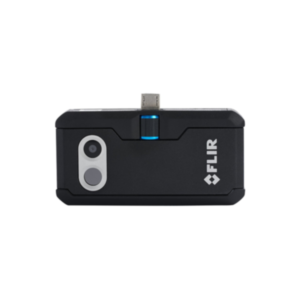

FLIR กล้องถ่ายภาพความร้อน รุ่น FLIR ONE PRO LITE
แบรนด์
Download Datasheet
รายละเอียด
Specification
Accuracy | ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C. |
Non-Operating Temperature | -20°C — 60°C (-4°F — 140°F) |
Scene Dynamic Range | -20°C — 120°C (-4°F — 248°F) |
Spot Meter | Off / °C / °F. Resolution 0.1°C / 0.1°F |
Thermal Sensitivity/NETD | 100 mK |
Weight | 36.5 g |
Dimensions (H x W x D) | 68 × 34 × 14 mm (2.7 × 1.3 × 0.6 in) |
Phone | ANDROID (USB C) |
APP
Adjustable MSX distance | 0.3 m — Infinity |
Battery charge monitor | 0 — 100% |
Capture modes | Video, Still image, Time lapse |
File Formats | Still images – radiometric jpeg Video – MPEG-4 (MOV) |
Palette | Gray (white hot), Hottest, Coldest, Iron, Rainbow, Rainbow HC, Arctic, Lava and Wheel |
Video and Still Image Display/Capture | Saved as 1440 × 1080 |
COMPLIANCE & CERTIFICATIONS
Certifications | MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233 |
CONNECTIONS & COMMUNICATIONS
Charging | Female USB-C (5V/1A) |
Video | Male Lightning |
ENVIRONMENTAL & APPROVALS
Emissivity Settings | Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% |
Mechanical shock | Drop from 1.8 m |
Operating Temperature | 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F) |
IMAGING & OPTICAL
Focus | Fixed 15 cm — Infinity |
Frame Rate | 8.7 Hz |
General Description | Thermal and Visual Cameras with MSX |
HFOV/VFOV | 50° ±1° / 38° ±1° |
Shutter | Automatic/Manual |
Thermal Resolution | 80 × 60 |
Thermal Sensor | Pixel size 17 µm, 8 — 14 µm spectral range |
Visual Resolution | 1440 × 1080 |
POWER
Battery charge time | 40 min |
Battery Life | Approximately 1 hr |
